Hardware

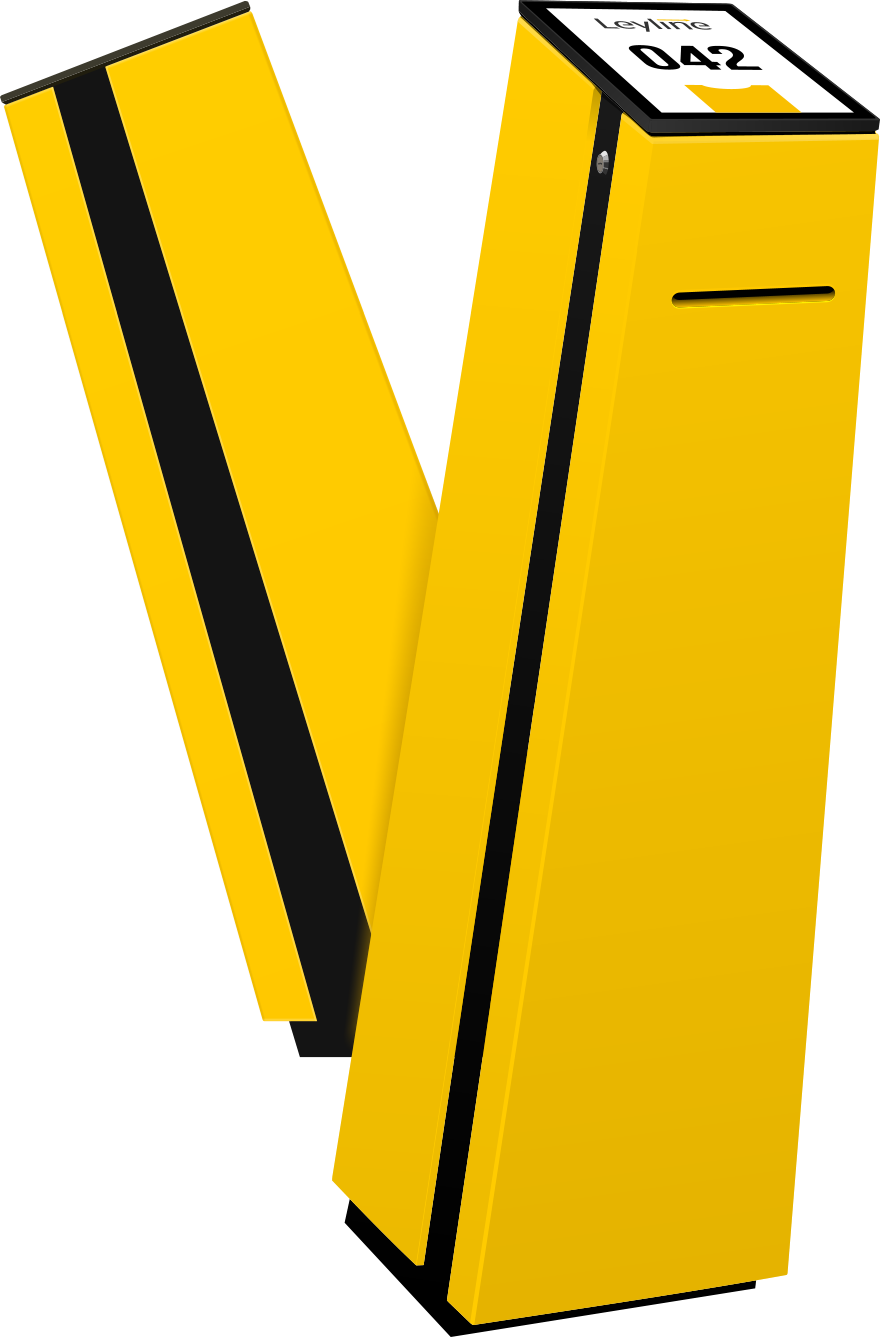

MOON I

Ticket dispenser kiosk designed for Leyline.

Moon I has three material options: wood, plastic, and steel.

Wood is our main material of choice. Plastic and steel can be useful for outdoor uses. There is a completely wireless option, battery powered, for exhibitions and temporary set-ups.

We also have a PoE-only option for kiosks, which makes installation even easier and sometimes a lot cheaper.

Moon I can be extended with additional hardware, e.g., a QR code scanner, card reader, speakers, or accessibility device called Portal.

Tech specs:

PRINTER

Star Micronics Thermal Printer Sanei SK1-31
Thermal printing
Print width: 54-80 mm
Max roll diameter: 80 mm
Roll thickness: 0.065-0.15 mm
Max print speed: 200 mm/sec
Max print length: 300-600 mm
Print quality: 203 dpi

SCREEN

10” Touchscreen Display Leyline Vision
10” touchscreen (multi-touch 10 points)
Resolution: 1280 × 800 (16:10)
Contrast: 800:1
Brightness: 800 cd/m²
Angle of view (hor/ver): 170°/170°

DIMENSIONS

Height back: 101 cm
Height front: 92 cm
Width top: 17 cm
Width bottom: 27 cm
Angle: 77°

CONNECTIONS

USB 2.0
Ethernet (100/10 Base T)
AC 230 V 50/60 HZ

WARRANTY

3 years

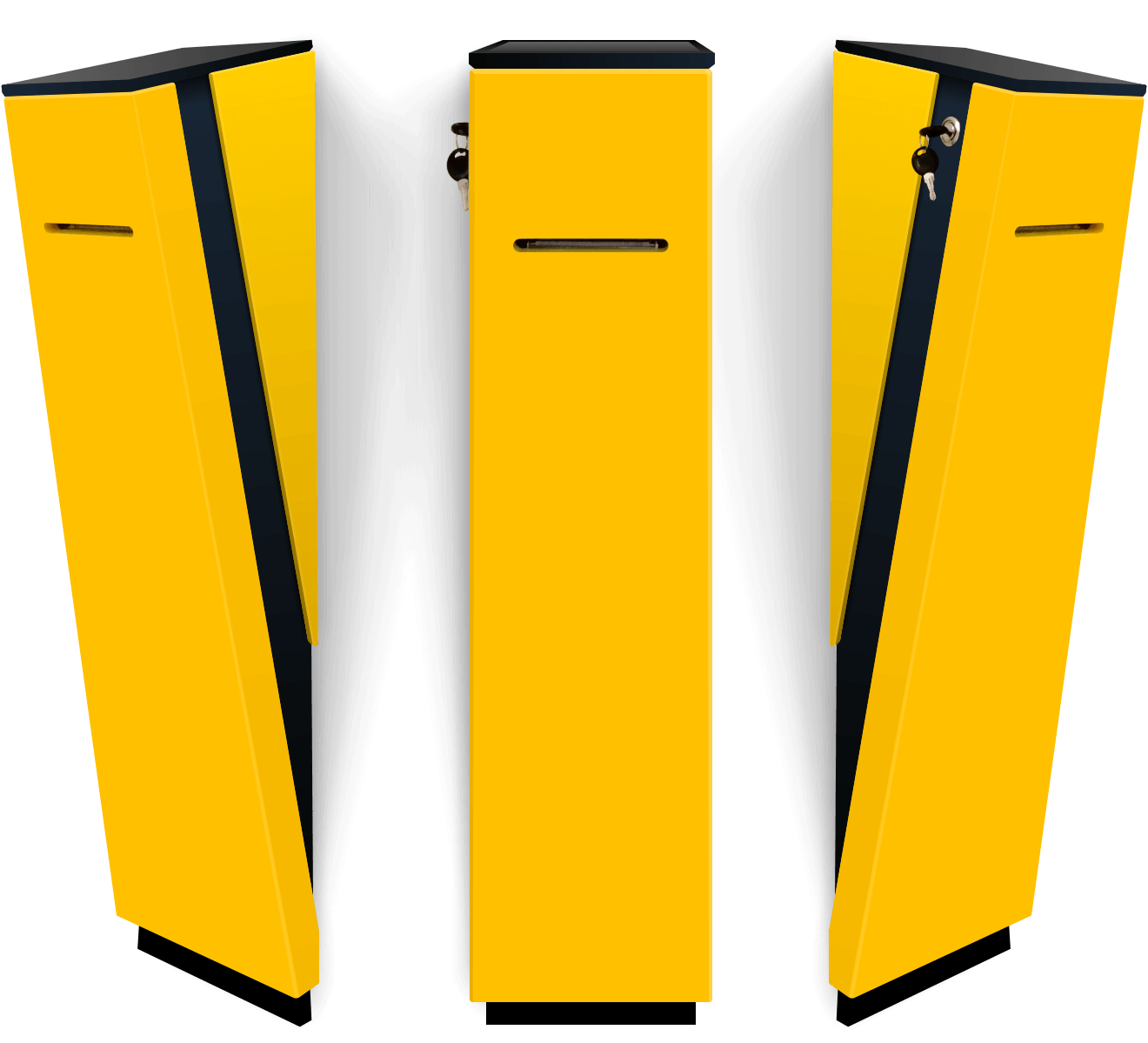

MOON I: Wall-mounted

Best for: for places with limited space

Tech specs:

PRINTER

Star Micronics Thermal Printer Sanei SK1-31
Thermal printing
Print width: 54-80 mm
Max roll diameter: 80 mm
Roll thickness: 0.065-0.15 mm
Max print speed: 200 mm/sec
Max print length: 300-600 mm
Print quality: 203 dpi

SCREEN

10” Touchscreen Display Leyline Vision
10” touchscreen (multi-touch 10 points)
Resolution: 1280 × 800 (16:10)
Contrast: 800:1
Brightness: 800 cd/m²
Angle of view (hor/ver): 170°/170°

DIMENSIONS

Height back: 93.2 cm
Height front: 87.8 cm
Width top: 15.8 cm
Width bottom: 25 cm
Angle: 77°

CONNECTIONS

USB 2.0
Ethernet (100/10 Base T)
AC 230 V 50/60 HZ

WARRANTY

3 years

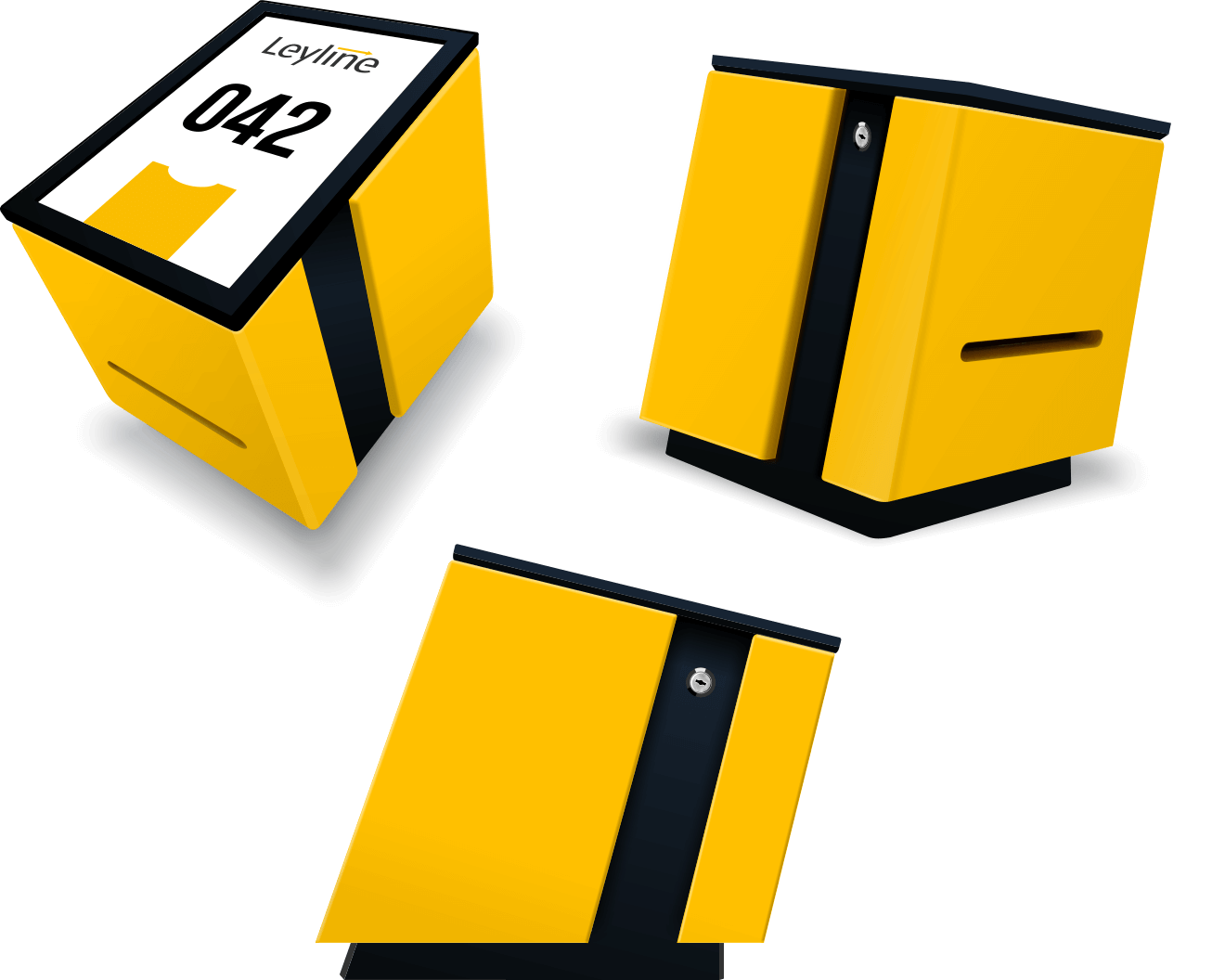

MOON I: Table-top

Best for: concierge cases and temporary setups

Tech specs:

PRINTER

Star Micronics Thermal Printer Sanei SK1-31
Thermal printing
Print width: 54-80 mm
Max roll diameter: 80 mm
Roll thickness: 0.065-0.15 mm
Max print speed: 200 mm/sec
Max print length: 300-600 mm
Print quality: 203 dpi

SCREEN

10” Touchscreen Display Leyline Vision
10” touchscreen (multi-touch 10 points)
Resolution: 1280 × 800 (16:10)
Contrast: 800:1
Brightness: 800 cd/m²
Angle of view (hor/ver): 170°/170°

DIMENSIONS

Height back: 23.6 cm
Height front: 18.3 cm
Width top: 15.8 cm
Width bottom: 18.3 cm
Angle: 77°

CONNECTIONS

USB 2.0
Ethernet (100/10 Base T)
AC 230 V 50/60 HZ

WARRANTY

3 years
